  1. 箇条書き項目 Anodic Catalyst for Fuel Cell


A Key Material for Improving Performance of Fuel Cell

     CAT No. F-03

For asking delivery-term and shipping-cost, send email by using the right green button.

Price: US$ 160 per 1 g

     (Unit for Sale: 1 g)

Technical information

  1. 箇条書き項目 Solid Oxide Fuel Cell (SOFC) is a promised device for an effective utilization of natural gas. Nano-structured Pd/MnO2 shows the excellent catalysis as the anodic material in SOFC, compared to that of conventional  Pt catalyst.

  1. 箇条書き項目  We found that a composite catalyst containing Pd/MnO2 and Fe particles, provides a significant improvement in the capability on a SOFC system using dimethyl ether as the raw fuel. This improvement will contribute effectively to realize a novel hybrid power system constructed with SOFC and diesel engine in near future.

  1. 箇条書き項目  Fig. 1 shows the performance of the SOFC using the composite catalyst as the anode at 600℃. The maximum performance was obtained as the output power density of 58.8 mWcm-2 when Fe-Pd/MnO2 (30 wt%):was used in the anodic catalyst. This performance is larger than that of Fe, Pt, Ni, or Cu catalyst under the similar experimental condition used same SOFC system (Figs 2 and 3).

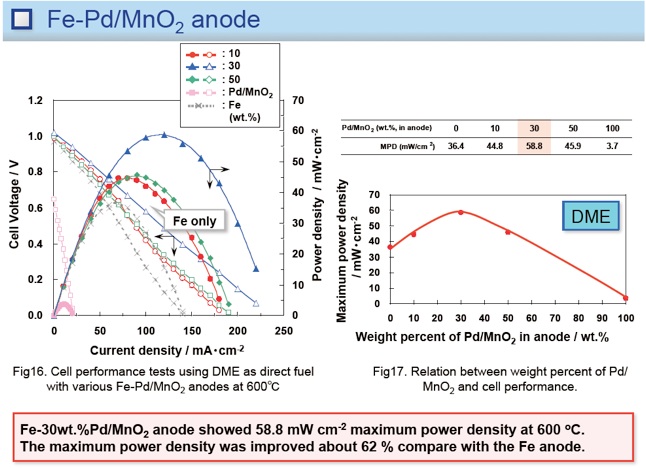

Fig. 1 Variation of cell performance using different composite catalysts of Fe-Pd/MnO2

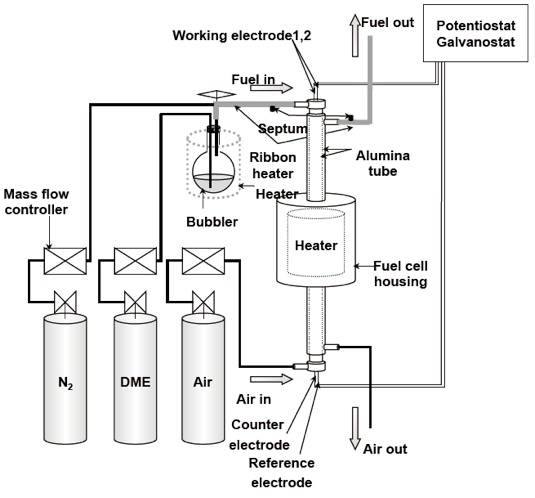

Fig. 2 Over view of fuel cell system


K. Takeuchi, K. Ui, K. Fujimoto, S. Ito, N. Koura, C.-K. Loong and H. Koyanaka,  Development of the Solid Oxide Fuel Cell Operated at Intermediate-temperature for Direct Utilization of Dimethylether Fuel, Taiwan-Japan Symposium on Polyscale Technologies for Biomedical Engineering and Environmental Sciences (PT-BMES 2012), National Tsing Hua University, Hsinchu, Taiwan, Sep.5, (2012)

K. Takeuchi, R. Tai, K. Ui, K. Fujimoto, S. Ito, H. Koyanaka and N. Koura, Direct-DME SOFC for Intermediate Operation Temperature Using Proton Conductor as the Electrolyte, ECS Transactions, Vol. 35, Issue 1 "Solid Oxide Fuel Cells 12 (SOFC-XII), pp. 2755-2759, (2011)

K. Takeuchi, Y. Ishida, K. Kasuya, Y. Tai, H. Koyanaka, K. Ui, N. Koura, Development of the Solid Oxide Fuel Cell Operated at Intermediate-temperature for Direct Utilization of Dimethylether Fuel, Electrochemistry, Vol.75, 10, p.786-790, (2007)
